KM100=KM100E=KM100X
Autel MaxiIM KM100(X)

2025 Newest Autel KM100

The KM100 is available in various versions, including KM100, KM100X, and KM100E. There are no functional differences between these models. The variation is simply due to different distributors, but all versions offer the same core features.

The Autel MaxiIM KM100 (2025) redefines automotive key programming with its intelligent Android tablet design, offering advanced transponder cloning, IMMO coding, and smart key replacement for 700+ vehicle models. Designed for locksmiths and technicians, this all-in-one kit combines cutting-edge key generation with unmatched ease of use.

And it has advanced hardware configuration:5.5-inch screen with 1280 x 720 resolution, Rockchip PX30 (4x ARM Cortex-A35 1.5GHz), Android 9.0, 2GB RAM/64GB Memory, 8MP Camera, Wi-Fi, Bluetooth 5.0, USB 2.0 type C, 4950mAh Battery

Advanced IMMO Functions

• Key Learning via OBD for 90% Vehicles
• Generate Simulator Key ( as Emergency Key)
• Smart Remote Learning / Key Learning
• IMMO Data Backup / Restore
• Key Generation / Program a Smart Key
• All Key Lost / Add a Key
• Read PIN / Password Calculation
• IMMO ECU Reset / Adaptation / Refresh / Coding

KM100 60s Key Generation (Autel Universal Only)

• Universally Applicable Autel IKEY: Autel MaxiIM KM100 (X) car key programmer can program the Autel IKEY as a smart key replacement for more than 700 US, EU, Asian vehicles.
• High-Efficient Key Generation: 60 seconds to generate new key, efficiency increased by 50%+.
• Simplified Operation: one-click get to IMMO learning directly after the key generated.

Note: Autel KM100 (X) key programming functions vary from car to car, it's better to send the 17 digit VIN of your car to sales@obdprice.com to check compatibility first before you order.

KM100 Vehicle Compatibility

• AutoVin vehicle identification to ensure accuracy
• Simple Operation, Guided User Instructions
• Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
• Supporting 8 Key Series And 37 Models
• Covering The Top 100 Selling Models

Autel MaxiIM KM100 Transponder Functions

• Transponder Reading: give you the access to some basic information pertaining to the key, including chip type, IMMO type, transponder ID, locking status, and code mode.
• Transponder Cloning: Autel KM100 (X) key programmer supports various transponder types for cloning and editing, You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.
• Transponder Editing: read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.
• Transponder Generation: generate a functional transponder accommodating different protocols or models using a blank transponder.
• Transponder Simulation: simulate the KM100 (X) to work as a transponder using a variety of IMMO protocols for emergency use (for ID46 47 48 49 4A 8A) when there is no chip around.

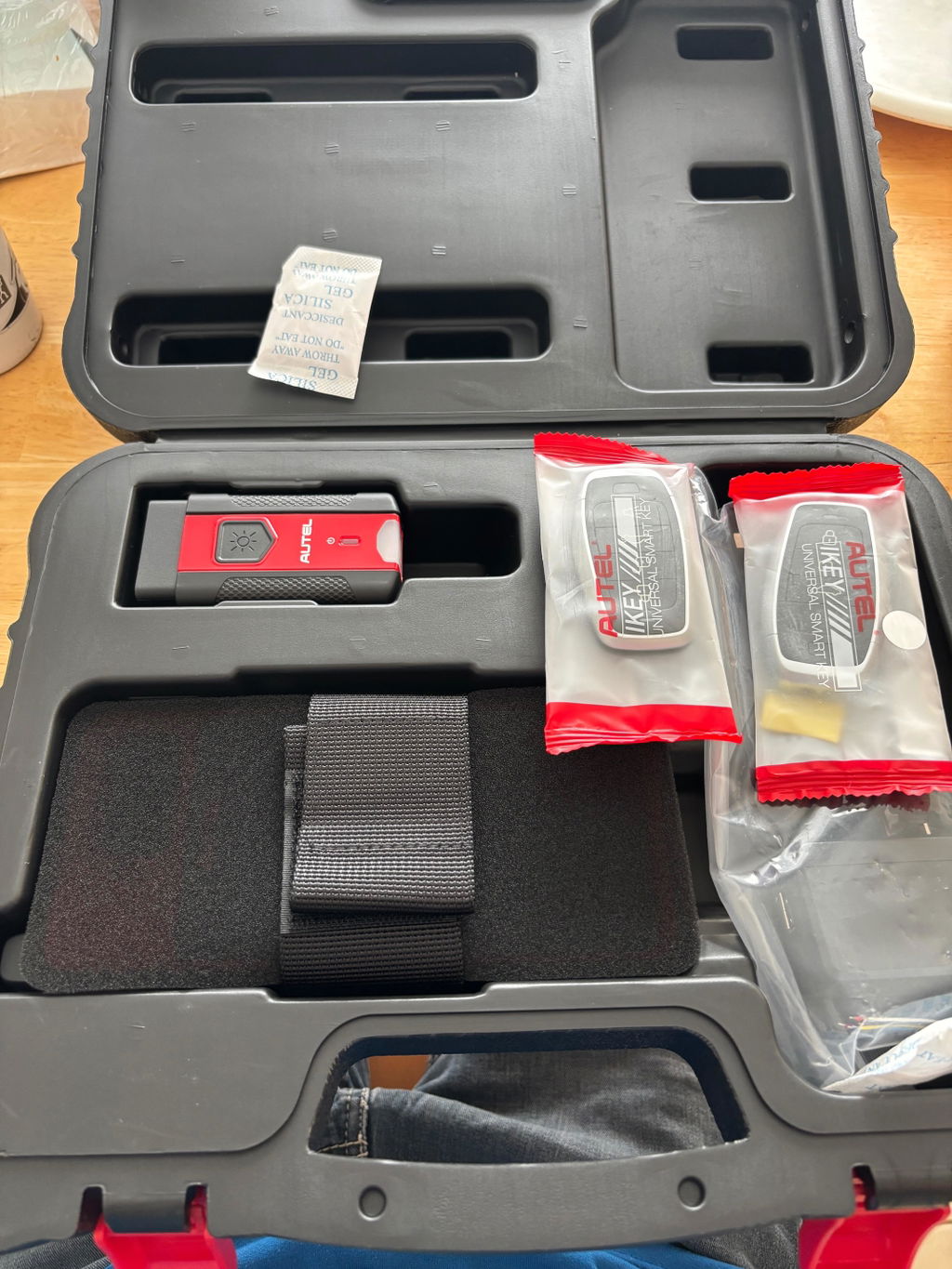

Autel MaxiIM KM100 with 2pcs Autel IKEYs

Autel MaxiIM KM100 (X) Intelligent Key Programming Tool package includes 2 Autel universal blank keys for one-stop solution. Autel IKEY is produced strictly according to OE factory production criterion, and each model is tested repeatedly to ensure the high accuracy rate and full functionality, supporting Certification Requirements of Various Regions. Programmed Autel's IKEY universal ke-y as smart key replacement for more than 700 vehicles, and the Key can be reused.

• Support 8 series, 37 types appearances, and continue increasing
• Support compatible low frequency (315MHz/433MHz) and high frequency (868MHz/915MHz) types.
• Each model is strictly implemented according to the acceptance indicators of immo, RKE and PKE.

8 Series IMMO Types: ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB.

(ID4D: ID4D only has remote control. If the key is out of power and the vehicle cannot be started in an emergency, an additional 4D transponder need be installed)

MaxiIM KM100 Hot Add Functions

• Frequency Detection: supports smart key frequency detection for a wide range of vehicle models, and display frequency data on the screen in both text and graph.
• IMMO Data Processing: add the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra key available.
• Key Unlocking (Key Renewal):use the KM100(X) to renew the firmware of the used smart key via cable connection to unlock a new car, working on 36 vehicle makes.
• Universal Key Information Detection: read the Autel universal key information, including the serial number, key ID, and IMMO version etc.
• Button Adjustment: assign the button functions of the Autel universal key.
• Ignition Coil Detection: place Autel KM100(X) low frequency detection collector to the ignition coil or the emergency start coil to detect the transponder type, Detection records will appear at the bottom of the screen.

Outstanding Capabilities

Superior Hardware

• Display: 5.5-inch screen with 1280 x 720 resolution
• CPU: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
• OS: Android 9.0
• Memory: 2GB RAM/ 64GB on-board memory
• Camera: 8 Megapixels
• VCI: MaxiVCI V200
• Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
• Battery: 4950mAh

MaxiIM KM100 Specs
