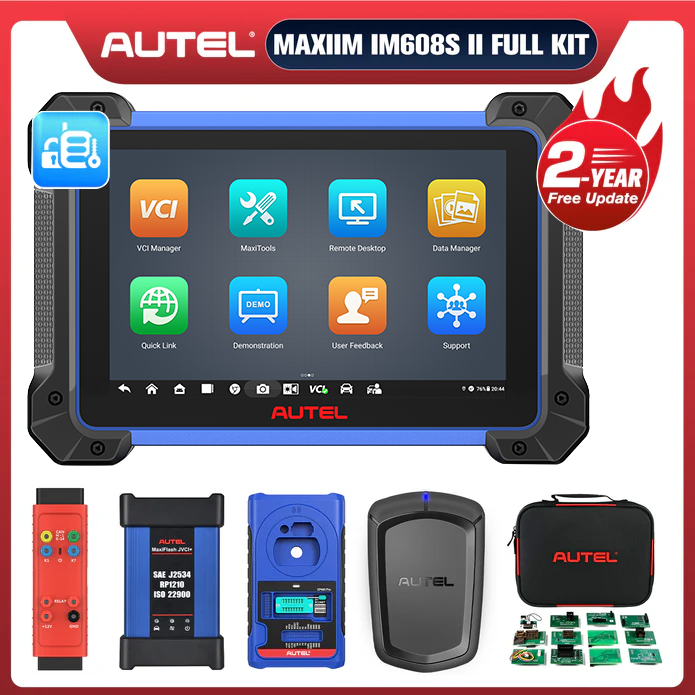

【2-Year Free Update】Autel MaxiIM IM608S II Full Kit Plus IMKPA Accessories with 2 Free OTOFIX Watches, IMMO Key FOB Programming Tool, Same as MaxiIM IM608 PRO II

items available In Stock |
from Original price
Original price
CA$4,199.00
from CA$4,199.00
Current price CA$4,199.00

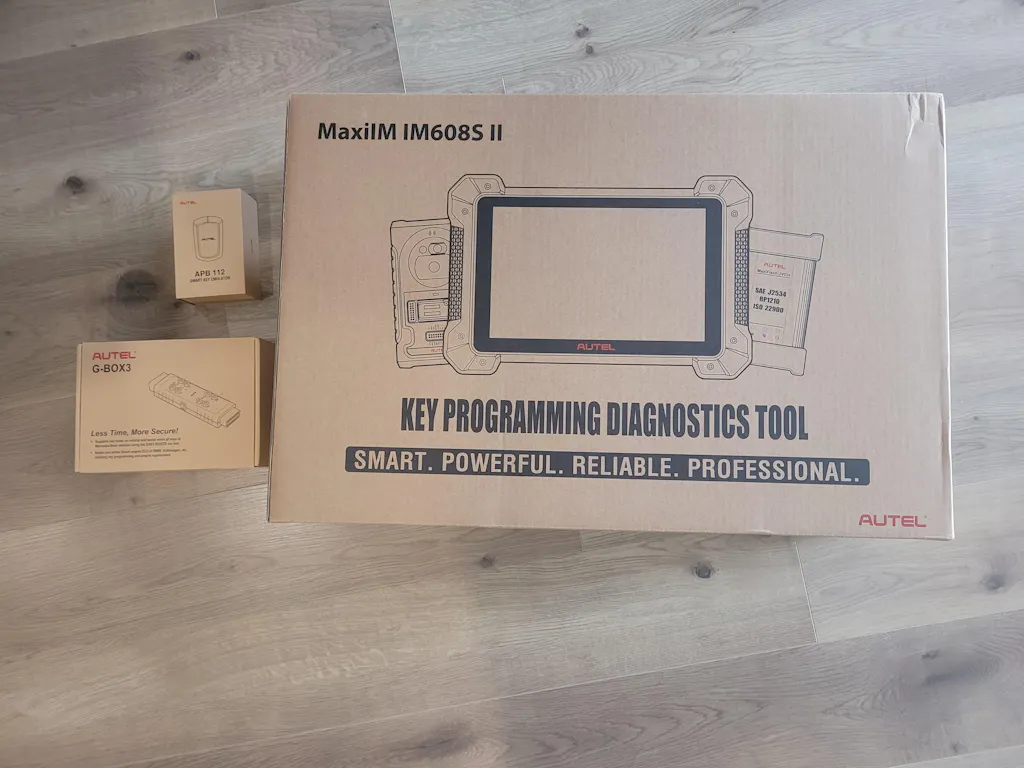

Item: IM608S II with IMKPA+APB112+GBOX3

Delivered by Mon, Oct 14 - Wed, Oct 16 Ship from Richmond,British Columbia,Canada

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by USPS, UPS or FedEx
  • Description
  • Comparison
  • Accessories
  • Software Update
  • Shipping
  • Certificate
    • Description

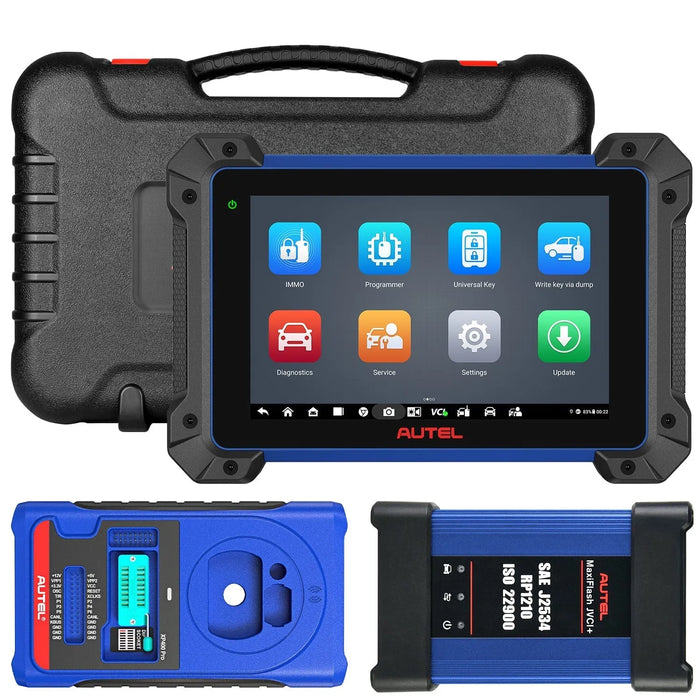

  • Autel MaxiIM IM608S II (IM608 PRO II) Key Fob Programming Tool


    Autel MaxiIM IM608S II is the newest all-in-one OBD diagnostic tool this year, combining full IMMO and programming function coverage, all system diagnostics, 36+ maintenance functions, ECU coding and ECU online programming (J2534 JVCI compatible) and more. It functions exactly the same as Autel MK908P II or MaxiSYS MS908S Pro II.

    Main Configuration Updates Based on Autel IM608 Pro:

    • Operating system move on to Android 10 from Android 4.4.
    • Upgraded 8-core Qualcomm SDM660 8-Core Processor replacing old Exynos T5260 6-Core Processor.
    • Doubled RAM & ROM: 4GB/128GB; SD card support up to 64GB (IM608 Pro support max 32GB)
    • 16MP Rear camera replacing the previous 8MP one.
    • Optimazed newest Software version & More Intuitive Interface.

    Autel MaxiIM IM608S II Features

    • No IP Limitation: You Can Use it All Around the World without Limitation
    • One Year Free Update Online (After One Year, IM608S II Software Subscription Cost $626/Year)
    • Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
    • Smart Mode and Expert Mode Solution In One Tool to Easy Operation with Ambient Light Sensor – detects ambient brightness.
    • Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)
    • Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop
    • Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.

    Autel MaxiIM IM608S II Top Highlights

    Advanced IMMO & Key Fob Programming Bundle

    Advanced IMMO & Key Fob Programming Bundle of im608s ii
    Upgraded from IM608/IM608PRO, the IMMO & key fob programming tool IM608S II can also read the immobilizer pin codes and password directly from the vehicle and store the information to do key learning for the newly programmed keys. The professional key fob programming tool Autel IM608S II has covered almost all the key programming functions:
    • Auto Detect Make/Model/Year/System
    • Read PIN (All Key Lost), Key Learning
    • IMMO ECU Reset/Adaption, IMMO ECU Refresh/Coding
    • VW MQB Key Learning, Mercedes Key Learning
    • B~MW FEM/BDC Key Learning and Adaption, Programming and Coding functions for lMMO related systems: DME,JBE,FRM,CAS, KOMBI,EGS, GwS,ZGW, ELV and FZD
    • B~MW CAS4 Key Learning and Adaption
    • Mercedes-Benz: Coding SCN for lMMO related systems;DAS, ECU, TCU, ISM and ESL
    • 2015-2018 Land Rover & Jaguar write key via dump
    • Volvo Smart Key Learning/knob-style smart key

    Advanced XP400 PRO Key Programmer


    When working with the upgraded Autel XP400 PRO key and chip programmer, more professional IMMO functions are available on this Autel IM608S II scanner, which can be highly successful in helping the technician during IMMO troubleshooting operations. Allow users to select based on different situations and needs, thus improve work effoiciency to the maximum.

    • Read/Write Transponder Data;
    • Read/Write MC9S12 Encryption Chip & IC Card
    • Read/Write ECU / MCU / EEPROM Data
    • Read/Write Mercedes Infrared Key
    • Detect Remote Frequency

    Moreover, this advanced key & chip programmer XP400 Pro can access much more key chip types (3,000+ chip types, including EEPROM, engine ECU, MCU, IMMO ECU) to read & write key information, learn keys to the vehicle, as well as other key related functions:

    • Expanded EEPROM functions for more component access
    • 170+ types Odometer component reading functions
    • 180+ Immobilizer ECU component types
    • 40+ Engine ECU component types
    • 2000+ MCU component types
    • 440+ EEPROM component types
    • (Compatible with IM508, IM608, and IM608 Pro)

    Advanced ECU Coding


    Autel IM608S II features the same level diagnoseability MK908P II & MaxiSYS MS908S Pro II, it can access to all the electronic system of the vehicle to perform OE level diagnosis to read and clear DTCs, view live data in text, graph, or waveform, retrieve ECU information, conduct Active Test on various systems, Advanced ECU Coding and etc. IM608PROKPA with J2534 MaxiFlash JVCI (J2534 ECU Programmer) to provide more stable and quick diagnosis experience.

    Online & Offline ECU Programming:

    (1) program the data to a new IMMO module, (2) repair the IMMO ECU data loss, (3) upgrade the IMMO ECU software version, etc.

    • Advanced ECU coding: Help to match the replaced modules and reprogram the adaptive data.
    • Online ECU coding: Allow you to obtain the online code data from the OEM server.
    • Activate higher-level functions: customizing interior lights /changing US-style daytime running lights /automatic door locking at a particular speed /mirrors automatically folding and unfolding etc.
    • Deactivate unneeded functions: deactivating the auto start-stop /changing the chimes /deactivating injector buzz sounds /disabling seat belt warning sounds etc.

    Online ECU Coding:

    • Directly access to the OEM online coding data of high-end vehicle repair.
    • Compatible with B~MW, for Benz, for Audi, for Porsche, etc

    NOTE: ECU Coding is not universal to all cars, please check compatibility with your VIN before you order.

    36+ Special Functions

    36+ Special Functions of im608s ii
    Autel MaxiIM IM608S II auto key programming tool supports over 36+ service functions that every mechanic needs for daily service and maintenance performances including: Oil Reset, ABS Bleeding, Steering Angle Sensor Reset, Parking Brake Pad Relearn, Battery Registration and Reset, Injector Coding, Throttle, Cam Crank Relearn, IMMO Keys, WIN DR ROOF, Seats, Odometer, Lang Change……

    Some of the more popular and commonly used repair functions:

    • Oil Reset: Reset the new calculation of Engine Oil Life System for an accurate reading of the next oil change.
    • TPMS Reset: Reset tire pressure and turn off the TPMS light after replacement.
    • EPB Reset: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.
    • BMS Reset: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.
    • IMMO / Key Programming: Disable a lost vehicle key to protect the vehicle from being stolen and add the new key. (work only on Asian cars that feature low-grade IMMO system)
    • Injector Coding: Code a new injector to better identify injectors to accurately control fuel injection.
    • ABS Bleeding: Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.
    • SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.

    Note: The above mentioned is just a small portion of all supported services and more are not listed. Please also know that Not All service & Special functions are universally compatible.

    98% of Vehicle Coverage

    im608ii 98% of Vehicle Coverage

    Autel IM608S II key programming, diagnotic & service all-in-one scan tool can work on over 80 American, European and Asian vehicle makes and models to scan all available systems to perform diagnostics, services and IMMO & Key programming functions, including Mercedes Benz, VW, Audi, Skoda, Jaguar, Jeep, Land Rover, Honda, Lexus, Kia, Hyundai and etc.

    Autel IM608S II Quick Reference Guide

    Autel IM608S II Quick Reference Guide

    • Comparison
  •  Comparison of Autel MaxiIM Tools

    Item Autel IM608S II Autel IM608 PRO Autel IM508 Autel KM100
    Hardware Touch screen tablet & programmer Touch screen tablet & programmer Touch screen tablet & programmer Touch screen handset
    VCI √ (Bluetooth connection) √ (Bluetooth  connection) √ (wire connection) √ (Bluetooth connection)
    Automatic scan √  √  √  √
    Immo scan √  √  √  √
    Immo function Support program keys by OBD/on-bench/boot, immo part replacement Support program keys by OBD/on-bench/boot, immo part replacement Support program keys by OBD/on-bench/boot, immo part replacement Support program keys by OBD
    Diagnostic function Medium diagnosis, BMW & Benz immo programming Medium diagnosis, BMW & Benz immo programming Basic diagnosis ×
    Remote expert √ (coming soon) × × ×
    Processor Qualcomm SDM660 Octa-core Samsung Exynos T5260 6-Core Rockchip RK3188 Quad core PX30 4x ARM Cortex-A35
    System Android 10.0 Android 4.4.2, KitKat Android 4.4.4 Android 9.0
    RAM 4G 2G 1G 2G
    ROM 128G 64G 32G(64G after 2021) 64G
    Screen 10.1inches,  1920*1200 10.1inches,  1920*1200 7inches, 1024*600 5.5inches, 1280*700
    WiFi √  √  √  √
    Bluetooth V5.0+BR/EDR V2.1+EDR ×
    USB USB 2.0 (2 USB host type A, 1 USB mini device) USB 2.0 (2 USB host type A, 1 USB mini device) USB 2.0 (1 USB host type A, 1 USB mini device) ×
    HDMI HDMI 2.0 HDMI 1.4A × ×
    SD Card √ (support up to 64G) √ (support up to 32G) √ (support up to 32G) ×
    Headphone jack √  √  × ×
    Microphone 1MIC 1MIC × ×
    Loudspeaker 2 2 × ×
    GPS × × ×
    Light sensation √  √  × ×
    Buttons 1 power button 1 power button 1 power button ×
    Battery 3.8V, 15000mAh 3.8V, 15000mAh 3.7V, 5000mAh 4950mAh
    Camera Rear 16 megapixel, AF with flashlight Rear 8 megapixel, AF with flashlight × ×
    Lower computer JVCI+ JVCI All-in-one ×
    Programmer XP400 PRO XP400 PRO XP200 V200
    Connection Bluetooth/USB Bluetooth/USB All-in-one Bluetooth
    Read & write EEPROM √  √  √  ×
    Read & write MCU √  √  √ (less coverage) ×
    Read & write ECU √  √  √ (less coverage) ×
    Read & write immo module √  √  √ (less coverage) ×
    Read & write instrument/ airbag module √  √  √ (less coverage) ×
    Key identify √  √  √ (less coverage)
    Read by eeprom √  √  × ×
    Refresh key √  √  √ (need XP400 PRO)
    Detect frequency √  √  √ (need XP400 PRO)
    Generate transponder √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO)
    Transponder simulation √ (need APB112) √ (need APB112) √ (need APB112)
    Detect ignition coil √ (need APB112) √ (need APB112) ×
    Auto VIN ×
    Read & clear fault codes ×
    Live data ×
    Freeze frame ×
    Read ECU info ×
    Action test ×
    Services ×
    Special function √  ×
    Online coding √  × ×
    Offline coding √  × ×
    Hidden features √  × ×
    Guidance √  √  × ×
    Online programming √ (support partial Benz, BMW models) √ (IM608Pro supports partial Benz, BMW models) × ×
    Report manage ×
    Other functions Scan VIN, scan license, remote desk.
    D-PDU, RP1210, DoIP, CANFD diagnostic standard
    Remote desk, D-PDU, RP1210 diagnostic standard (DoIP/CANFD need adapter) Remote desk, CANFD diagnostic standard(need adapter) ×
    Inspection camera √ (MV105/ MV108) √ (MV105/ MV108) √ (MV105/ MV108) ×

    • Accessories

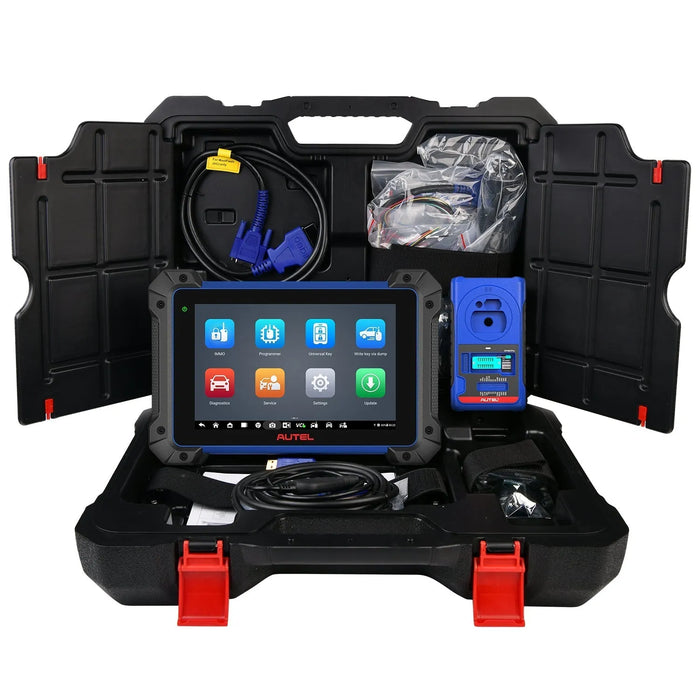

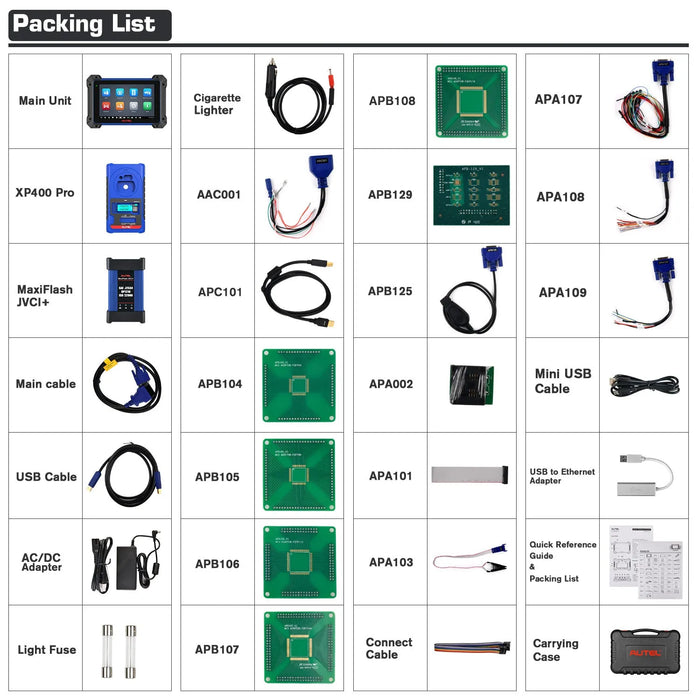

  • Autel MaxiIM IM608S II Package List

    Autel MaxiIM IM608 II Packing List
    • 1pc x IM608S II Tablet
    • 1pc x XP400 Pro Key Programmer
    • 1pc x JVCI+ ECU Reprogrammer
    • 1pc x Carry Case
    • 1pc x Main Cable
    • 1pc x USB Cable (2m)
    • 1pc x Connect Cable
    • 1pc x Mini USB Cable
    • 1pc x AC/DC Adapter (12V)
    • 1pc x AAC001
    • 1pc x APC101 (USB Cable)
    • 1pc x APB129 (EEPROM Adapter)
    • 1pc x APB125 (Mercedes Infrared Collector)
    • 1pc x APB104 (MCU_FQFP64)
    • 1pc x APB105 (MCU_FQFP80)
    • 1pc x APB106 (MCU_FQFP112)
    • 1pc x APB107 (MCU_FQFP144)
    • 1pc x APB108 (MCU_FQFP176)
    • 1pc x APB109
    • 1pc x APA002 (EEPROM Socket)
    • 1pc x APA101 (Signal Cable)
    • 1pc x APA103 (EEPROM Clamp)
    • 1pc x APA107 (ECU Clamp)
    • 1pc x APA108 (MCU Clamp)
    • 1pc x APA109 (MC9S12 Clamp)
    • 1pc x USB to Ethernet Adapter
    • Software Update
  • autel scanner software update 20% offer
    • Autel MaxiIM IM608S II Automotive All-In-One Key Programming Tool
      from Original price
      Original price
      CA$1,129.00
      from CA$1,129.00
      Current price CA$1,129.00

      Autel MaxiIM IM608S II One Year Software Update Service

      Autel MaxiIM IM608S II 1-Year Update Service The orginal MaxiIM IM608S II Key Programming Tool include 1 Year FREE software updates and 1 Year warr...

      View full details
      from Original price
      Original price
      CA$1,129.00
      from CA$1,129.00
      Current price CA$1,129.00

    Most Autel scanners featured 1-Year free update and of course, there also have some scanners with 2-year free updates.

    After the update subscription expires, you can continue to use the tool normally with the original software. but, to cover the latest functions and vehicle coverage, we recommend you can buy a new update subscription.

    Why buy update service from us?

    We are Autel Authorized Dealer, we offer better price than others.

    Product Model Our Update Price Market Update Price
    Maxisys Ultra 1,439 1795 Shop Now
    MS919 1439 1795 Shop Now
    MS909 1055 1495 Shop Now
    Maxisys Elite 960 1295 Shop Now
    Maxisys CV 1,535 1,895 Shop Now
    MK908P 960 1295 Shop Now
    MK908 1001 895 Shop Now
    MS908P/ MS908S Pro 1272 1695 Shop Now
    MS908/ MS908S 1,040 1,895 Shop Now
    MS906TS 1,024 1,795 Shop Now
    MK906BT 696 995 Shop Now
    MS906BT 600 895 Shop Now
    MS906 415 695 Shop Now
    Maxisys Mini MS905 848 1,295 Shop Now
    DS808TS 720 1,099 Shop Now
    MP808TS 719 1,099 Shop Now
    DS808/ DS808K 392 749.5 Shop Now
    MP808/ MP808K 465 849.5 Shop Now
    DS708 1,006 1,349.5 Shop Now
    MK808TS 336 695 Shop Now
    MK808BT 166 450 Shop Now
    MK808 160 324.5 Shop Now
    MX808TS 336 595 Shop Now
    MX808 128 324.5 Shop Now
    IM608/IM600 960 1,295 Shop Now
    IM508/IM100 392 649.5 Shop Now
    TS608 330 795 Shop Now

    FAQ about the subscription:

    Q: Is there a physical card of subscription to be sent, so I can add the subscription by myself?

    A: No, this subscription doesn't need delivery. We will add it for you directly.



    Q: My device has been expired 1 year, if I buy the subscription now, can I get the updates of last year?

    A: Yes, whatever how long your device expired, if you buy the subscription now, you will get all updates, even the updates during its expiration.

    Note: Devices that expired after 1st January 2015 can be updated to the last version of the software.



    Q: My device will be expired in 2 months, if I buy the subscription now, will it cover the 2 months or extend within the 2 months?

    A: The subscription will be extended within the 2 months.

    For example: Today is 11th May 2022, and your device will be expired on 30th July 2022.And you buy the subscription on 11th May 2022.After we add the one-year update service for you, your device will be expired on 30th July 2023.



    Q: What should I do if I want 2 year updates?

    A: You can purchase 2 pcs of the "one year update service".

    Similarly, you can choose the quantity when you purchase the subscription, so we will add corresponding year for you.

    • Shipping
  • Free Worldwide Shipping

    shipping policy

    Where is my order shipped from?

    We provide worldwide free shipping! And all orders will be shipped from the warehouse nearest to you and carried by DHL, FedEx, UPS, USPS, DPD, or Royal Mail according your address. Following is the location where our warehouse located at and estimate develiry date for reference.

    Your Address Shipping Location Delivery Estimated
    Canada BC, CA 3-5 Days
    United States CA, US NJ, US 3-5 Days
    Europe Germany 5-7 Days
    United Kingdom Leicestershire, UK 5-7 Days
    Australia Sydney, AU 7- 10 Days
    Other Countries HongKong 7-15 Days

    Order Processing Time

    All our order are processed and shipped out within 24 hours (excluding weekends and holidays).

    After the order is shipped out and received by the carrier, we will update you by email with a Track-and-Trace code with which you can follow your package and see the remaining shipping time.

    Please allow 24-48 hours for the tracking information to update.

    Shipping Address Change

    If you would like to change the shipping address for your order, please contact us by email with the new shipping address. Once the order is shipped, we can not alter the shipping address anymore.

    International Shipping Duties & Taxes

    - For international order. If the items don't ship from your local warehouse in your country/ region, you, the customer, will be responsible for the import duty, but please don't worry, We will decrease the declared value to reduce your import tax.

    Returns, Refunds, and Exchanges

    We provide a 30-Day Returns Service after delivery, If you are not satisfied with the item you bought or change your mind, please contact us for a return shipping address and ship all the items back to us for a refund in their original package.

    For more details of the return policy, please visit our Return Policy

    • Certificate
  • Autel Authorized Dealer

    OBDPRICE is Autel Authorized Exclusive Online Dealer. Products Created by Autel ® Innovation & Quality You Can Trust.

    autel scanner UK authorized dealer
