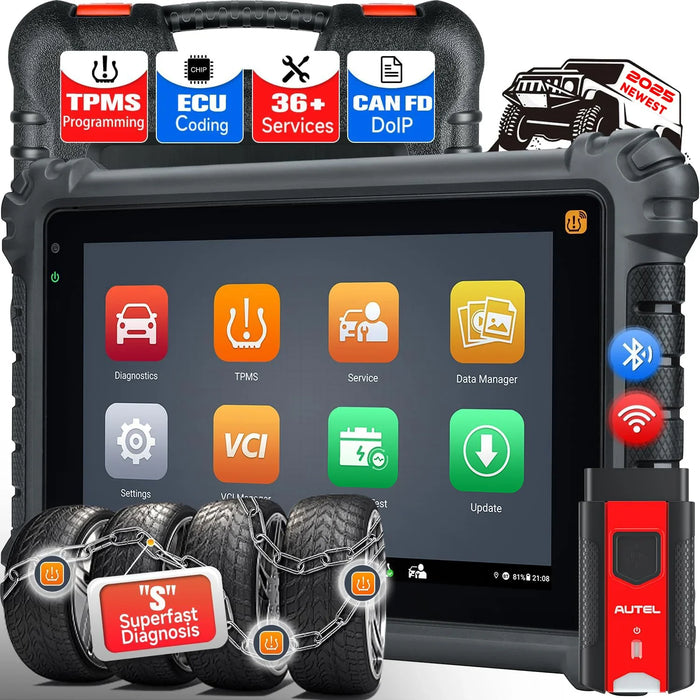

Autel MaxiCOM MK906 Pro2-TS – OE-Level Diagnostic and TPMS Relearn Tool
The Autel MK906 Pro2-TS is a professional, wireless diagnostic tablet designed for advanced vehicle diagnostics and TPMS solutions. Powered by an Octa-core processor and running on Android 10, this tool delivers fast, reliable performance with extensive vehicle coverage and workshop-level capabilities.
Key Highlights
- Global version with no regional restrictions
- 1-year free software update
- Supports multiple languages including English, French, Spanish, German, Russian, Japanese, Korean, Portuguese, and more
- Supports VAG guided functions with step-by-step instructions
- Supports DoIP and CAN FD protocols, ideal for newer GM, BMW (F/G chassis), Jaguar, Land Rover (2017+), and Volvo (2018+)
- Pre- and post-scan reports available to document vehicle status before and after repairs
Hardware Specifications
- 8-inch 1920x1200 LED capacitive touchscreen
- Octa-core processor
- 16MP rear camera with autofocus
![]()
- 11,600mAh rechargeable battery
- Built-in TPMS antenna (315/433MHz and 2.4GHz BLE)
- Android 10 operating system for fast boot and smooth multitasking
Vehicle Coverage
Compatible with most 1996 and newer vehicles in Australia, the US, Europe, and Asia:
Australia: Ford AU, Holden, Toyota, Hyundai, Kia, Mazda, Nissan, Mitsubishi, Isuzu UTE
US: Ford, GM, Chrysler, Dodge, Jeep
Europe: BMW, Mercedes-Benz, VW, Audi, Volvo, Renault, Peugeot, Porsche, Jaguar, etc.
Asia: Toyota, Honda, Nissan, Hyundai, Subaru, Lexus, Mitsubishi, Suzuki, Isuzu, and more
OE-Level System Diagnostics
Provides full access to major systems including engine, transmission, ABS, airbag, TPMS, EPB, BCM, HVAC, and suspension. Supports code reading/clearing, live data, freeze frame, active testing, and bi-directional controls for accurate troubleshooting.
Advanced ECU Coding and Adaptation
ECU Coding (Online and Offline):
- Supported on brands such as VW, BMW, Porsche, Renault
- Allows module adaptation, component replacement, personalisation of vehicle settings, and unlocking hidden features
- Online server access for faster and simpler coding on supported vehicles
ECU Module Replacement:
- Supported for Asian brands like Toyota, Honda, Hyundai, Nissan, and Kia
- Seamless module adaptation after replacement
Comprehensive TPMS Functions
- Activates and reads data from 99% of TPMS sensors on the market
- Relearns sensor IDs using Stationary, Auto, or OBD Relearn methods
- Programs Autel MX-Sensors (433/315 MHz) with multiple programming modes: Copy by Activation, Copy by OBD, Manual Input, and Auto Create
- Performs full TPMS health check including DTC read/clear and live data
- Supports TPMS retrofit for vehicles without factory-installed systems
Service and Maintenance Functions
Supports over 30 commonly used maintenance functions, including:
- Oil reset
- ABS bleeding
- Throttle adaptation
- EPB reset
- Steering angle calibration
- Injector coding
- DPF regeneration
- Gearbox matching
- Battery test (with BT506 accessory)
- Suspension calibration
- Headlight adaptation
- Crankshaft position learning
- Sunroof initialization
More functions are continuously updated and added via software updates.
Optional Add-ons (Sold Separately)
-
MaxiVideo MV108S: Digital inspection camera for internal component visibility
-
Autel BT506: Battery tester for in-vehicle and out-of-vehicle battery diagnostics (100–2000 CCA)
Cloud & Remote Support
- Remote expert assistance via Autel Cloud
- Cloud storage for diagnostics reports
- Easy export and sharing of scan results
Autel MaxiCOM MK906S Pro2-TS Specification:
| Operating System: |
Android 10.0 |
| Pro-TScessor: |
Samsung Exynos 8 Core（4*M2 2.3G + 4*A53 1.7G) |
| Memory: |
4/128GB |
| Display: |
8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: |
• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 5 Megapixel
Rear: 16 Megapixel
|
| Sensors; |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: |
• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: |
11 600 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply |
| Input Voltage: |
12 V (9-35 V) |
| Power Consumption: |
5 W |
| Operating Temp.: |
-10 to 55°C (14 to 131°F) |
| Storage Temp.: |
-20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): |
270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight |
NW: 1.05 kg (2.3lb.) |

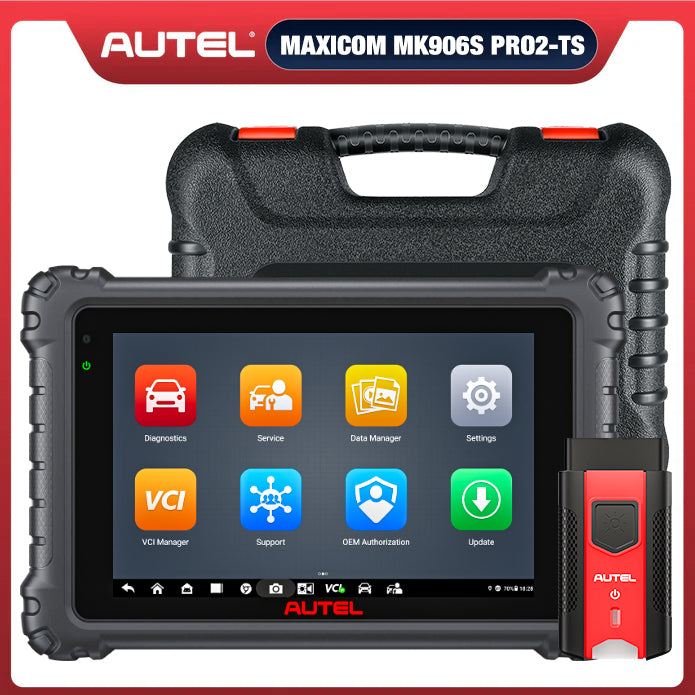

Autel MaxiCOM MK906S Pro2-TS Package List
- 1x MaxiCOM MK906S Pro2-TS main unit
- 1x MaxiVCI V200
- 1x AC/DC Adapter (12V)
- 1x Type C USB Cable
- 1x Cigarette Lighter Adapter
- 2x Spare Fuse(6*30mm)
- 1x USB to Ethernet Adapter
- 1x Soft Cloth
- 1x User Manual
- 1x Packing List
- 1x Carrying Case
- 1x Quick Reference Guide
