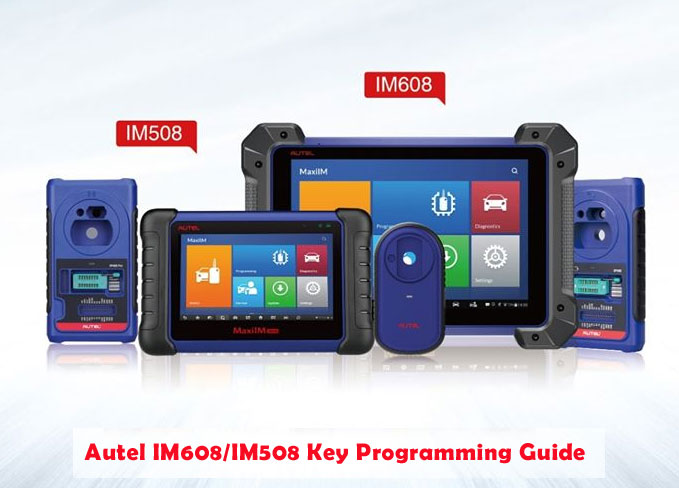

Autel IMMO Key Programming Tools Comparison
The Autel key programmer MaxiIM series has key programming tools and accessories such as IM608/IM508/KM100/APB112/G-box, which can perform IMMO related function settings for most automobiles on the market.
The Autel MaxiIM series key programming tool supports both IMMO services and car scanning diagnostic services. It is a powerful all-in-one OBD2 scanner tool.
Autel MaxiIM series of key programming tools for advanced factory-level diagnostics on U.S., Asian and European vehicles, additional key and immobilizer features include key generation, key and remote learning, immobilizer reset, refresh and encoding and transponder and EEPROM/ MCU reads and writes.
Although the traditional Autel scanner tool also supports IMMO services, it can only support basic key learning generation, etc., and cannot perform advanced IMMO learning. At the same time, when supporting IMMO-related operations, it is limited by vehicle coverage. For more support, please choose Autel MaxiIM series key programming tools.
Autel MaxiIM series key programming tools are currently available for Autel IM508, Autel IM508S, IM608S II, and the leading Automotive All-In-One Key Programming Tool. If you purchase Autel IM508 and above series now, you will also get a free OTOFIX watch or two years of software updates.
Item | Autel IM608S II | Autel IM608 PRO | Autel IM508 |
Hardware | Touch screen tablet & programmer | Touch screen tablet & programmer | Touch screen tablet & programmer |
VCI | √ (Bluetooth connection) | √ (Bluetooth connection) | √ (wire connection) |
Automatic scan | √ | √ | √ |
Immo scan | √ | √ | √ |
Immo function | Support program keys by OBD/on-bench/boot, immo part replacement | Support program keys by OBD/on-bench/boot, immo part replacement | Support program keys by OBD/on-bench/boot, immo part replacement |
Diagnostic function | Medium diagnosis, BMW & Benz immo programming | Medium diagnosis, BMW & Benz immo programming | Basic diagnosis |
Remote expert | √ (coming soon) | × | × |
Processor | Qualcomm SDM660 Octa-core | Samsung Exynos T5260 6-Core | Rockchip RK3188 Quad core |
System | Android 10.0 | Android 4.4.2, KitKat | Android 4.4.4 |
RAM | 4G | 2G | 1G |
ROM | 128G | 64G | 32G(64G after 2021) |
Screen | 10.1inches, 1920*1200 | 10.1inches, 1920*1200 | 7inches, 1024*600 |
WiFi | √ | √ | √ |
Bluetooth | V5.0+BR/EDR | V2.1+EDR | × |
USB | USB 2.0 (2 USB host type A, 1 USB mini device) | USB 2.0 (2 USB host type A, 1 USB mini device) | USB 2.0 (1 USB host type A, 1 USB mini device) |
HDMI | HDMI 2.0 | HDMI 1.4A | × |
SD Card | √ (support up to 64G) | √ (support up to 32G) | √ (support up to 32G) |
Headphone jack | √ | √ | × |
Microphone | 1MIC | 1MIC | × |
Loudspeaker | 2 | 2 | × |
GPS | √ | × | × |
Light sensation | √ | √ | × |
Buttons | 1 power button | 1 power button | 1 power button |
Battery | 3.8V, 15000mAh | 3.8V, 15000mAh | 3.7V, 5000mAh |
Camera | Rear 16 megapixel, AF with flashlight | Rear 8 megapixel, AF with flashlight | × |
Lower computer | JVCI+ | JVCI | All-in-one |
Programmer | XP400 PRO | XP400 PRO | XP200 |
Connection | Bluetooth/USB | Bluetooth/USB | All-in-one |
Read & write EEPROM | √ | √ | √ |
Read & write MCU | √ | √ | √ (less coverage) |
Read & write ECU | √ | √ | √ (less coverage) |
Read & write immo module | √ | √ | √ (less coverage) |
Read & write instrument/ airbag module | √ | √ | √ (less coverage) |
Key identify | √ | √ | √ (less coverage) |
Read by eeprom | √ | √ | × |
Refresh key | √ | √ | √ (need XP400 PRO) |
Detect frequency | √ | √ | √ (need XP400 PRO) |
Generate transponder | √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) | √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) | √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) |
Transponder simulation | √ (need APB112) | √ (need APB112) | √ (need APB112) |
Detect ignition coil | √ (need APB112) | √ (need APB112) | × |
Auto VIN | √ | √ | √ |
Read & clear fault codes | √ | √ | √ |
Live data | √ | √ | √ |
Freeze frame | √ | √ | √ |
Read ECU info | √ | √ | √ |
Action test | √ | √ | √ |
Services | √ | √ | √ |
Special function | √ | √ | √ |
Online coding | √ | √ | × |
Offline coding | √ | √ | × |
Hidden features | √ | √ | × |
Guidance | √ | √ | × |
Online programming | √ (support partial Benz, BMW models) | √ (IM608Pro supports partial Benz, BMW models) | × |
Report manage | √ | √ | √ |
Other functions | Scan VIN, scan license, remote desk. D-PDU, RP1210, DoIP, CANFD diagnostic standard |
Remote desk, D-PDU, RP1210 diagnostic standard (DoIP/CANFD need adapter) | Remote desk, CANFD diagnostic standard(need adapter) |
Inspection camera | √ (MV105/ MV108) | √ (MV105/ MV108) | √ (MV105/ MV108) |
