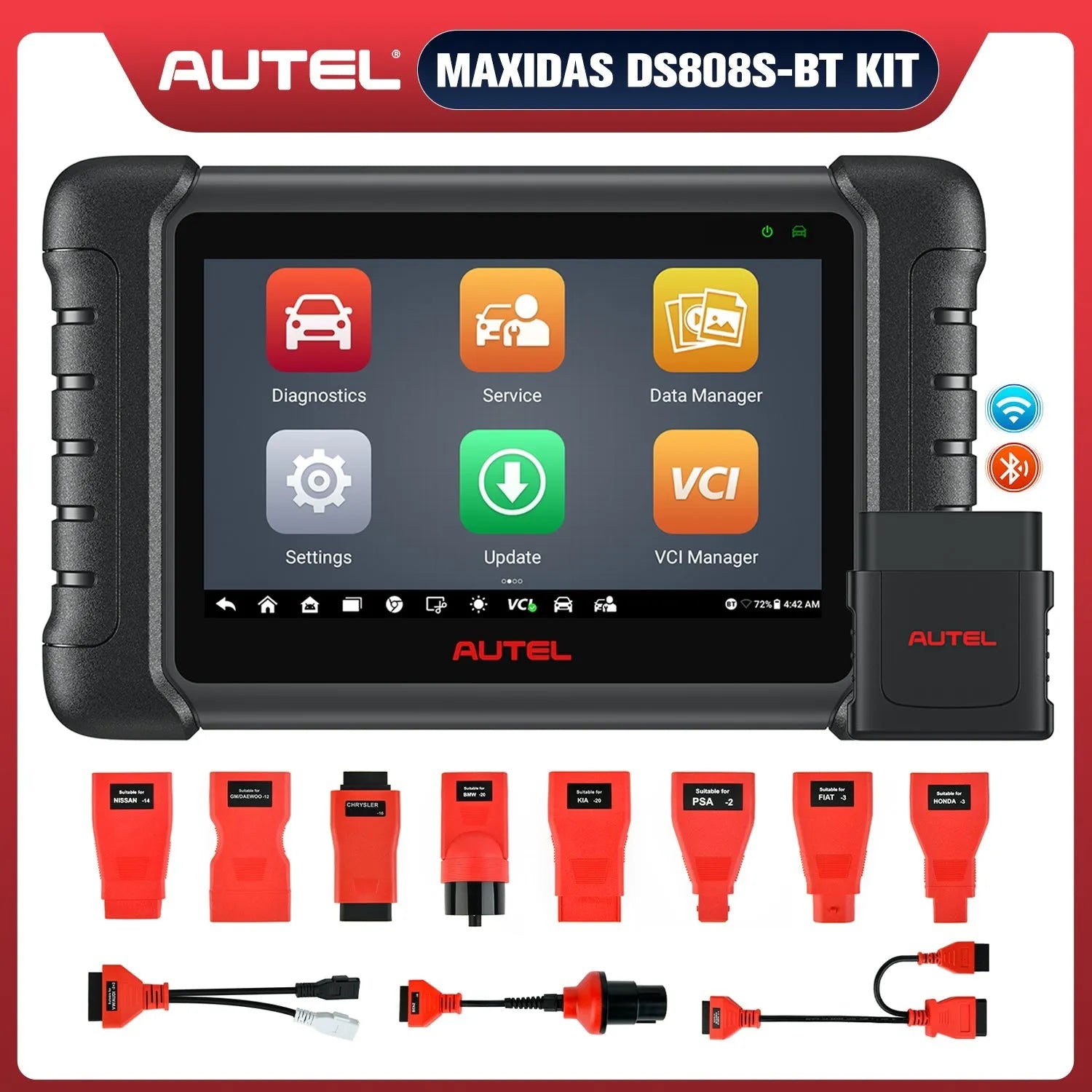

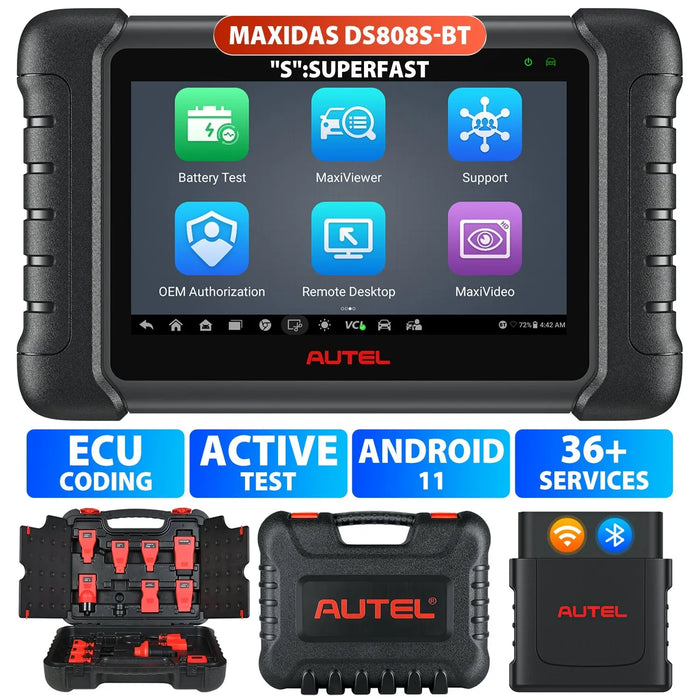

2026 Newest DS808S-BT ECU Coding Bidirectional Diagnostic Scanner
Autel MaxiDAS DS808S-BT is an upgraded version of the DS808/MP808, featuring significantly enhanced hardware for faster and more stable performance. Equipped with a powerful Rockchip RK3566 processor, 4GB RAM + 64GB ROM, Android 11, and dual-band Wi-Fi (2.4GHz & 5GHz), it delivers a smoother diagnostic experience.
With newly added ECU Coding for BMW, Porsche, VW and etc, the DS808S-BT brings advanced features typically found in premium tools—at a much lower cost. Best of all, it provides the same diagnostic functions and service coverage as the MS906, but at a much more affordable price—making it one of the most cost-effective scan tools for professional mechanics and workshops.
Why Choose Autel MaxiDAS DS808S-BT?
-
No Blocking - You can use DS808S-BT all over the world.
-
Cost-Effective Choice - Less than 300.00 for MS906, Get almost the same diagnostic functions and services. After get it, It has already saved you hundreds in trips to the mechanic for diagnostics and resets.
-
OE-Level Diagnosis - MaxiDAS DS808S-BT is an automotive diagnostic scanner that can access all available ECU modules. And perform OE-Level diagnosis
-
36+ Service Functions - DS808S-BT has More Than 36+service functions options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
-
Advancd Functions - Bi-dirctional Control: with bi-directional control (active test) capability over various car systems, and components like solonoids, relay, switch, valves, sunroof, window, door and perform active test.
-
1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
-
Support Multi-Language - English/Spanish/German/French/Portuguese/Italian etc. 13+Languages.
Autel MaxiDAS DS808S-BT Main Features
-
Extensive vehicle coverage for more than 80+ US, Asian and European vehicle makes
- Exceptional OE-Level system coverage for all electronic systems
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
- Smart AutoVIN technology for identifying vehicles easily
- Automatic system and software updates with real-time push message notifications via Wi-Fi
-
Instant remote control tech support anytime, anywhere
-
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Convenient data management system for managing internal program applications and reviewing data
Advanced ECU Coding
Autel DS808S-BT comes with ECU coding for BMW/Porsche/VW/Nissan/Hyundai etc.Help to Unlock hidden features,Change dislike settings,Code the blank modules,Improce vehicel performance.
Autel MaxiDAS DS808S-BT OE-Level Diagnostic
DS808S-BT is an automotive diagnostic scanner that accesses all available ECU modules including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, and SCCM. And perform OE-Level diagnosis on ABS, SRS(Airbag), Engine, Transmission, Brake Systems and etc. This scan tool can read and clear DTCs on all car systems and show live data steam of multiple sensors in graph and text.

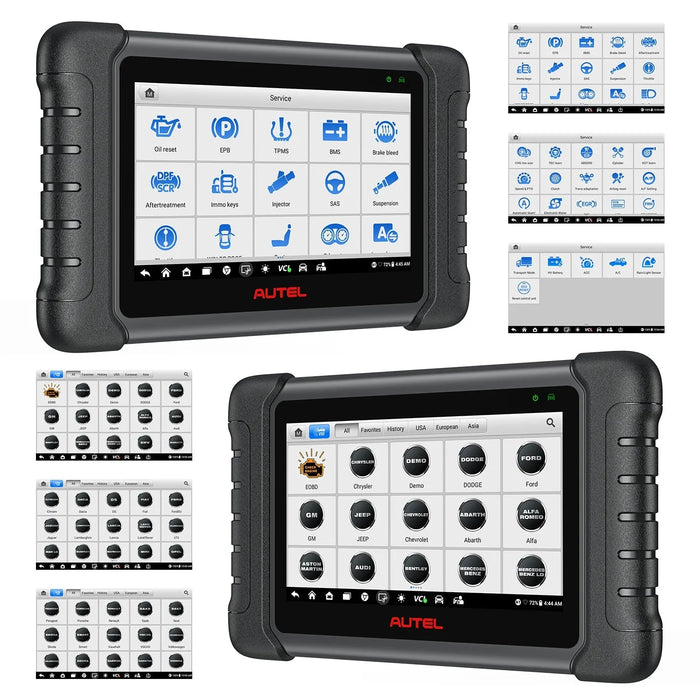

DS808S-BT Special Reset Services
DS808S-BT Supports a wide range of special functions, including Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more. One Tool with comprehensive functions which is equivalent to get MD802, MD808 PRO and Maxicheck Pro at the same time
-
Oil Reset: Reset the oil change calculator in the engine and automatic transmission
-
EPB: Replacement of brake pads on vehicles with an electric parking brake
-
SAS: Adaptation of the sensor to the angular position of the steering wheel
-
DPF: Regeneration of diesel particulate filter
-
Brake Bleed: ABS Brake Bleeding
-
BMS: Battery registration and reset
- Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
⚠️ Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.
Autel MaxiDAS DS808S-BT Additional Functions
DS808S-BT remote technical supports with the help of which Autel technical engineers get access to the MaxiDAS DS808S-BT diagnostic scanner remotely, which greatly simplifies the maintenance of diagnostic equipment, shortens the processing time of applications.
Active Test function is used to access to vehicle-specific subsystem and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators such as switching a solenoid, relay, or switch between two operating states.
-

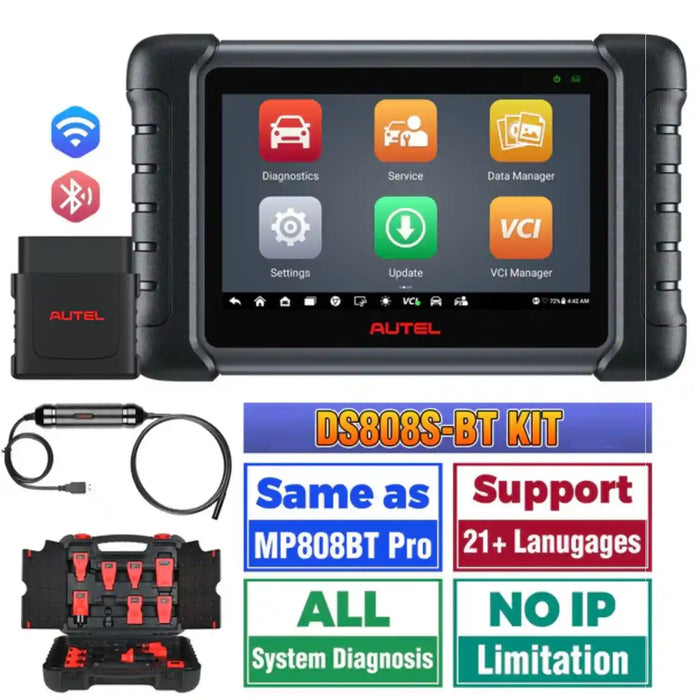

Digital Inspection with MV108
This allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, in a safe and quick way.

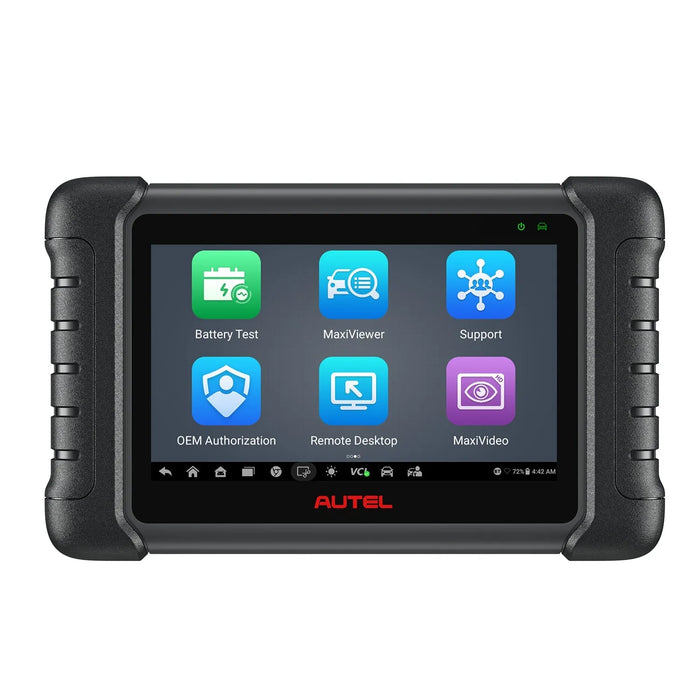

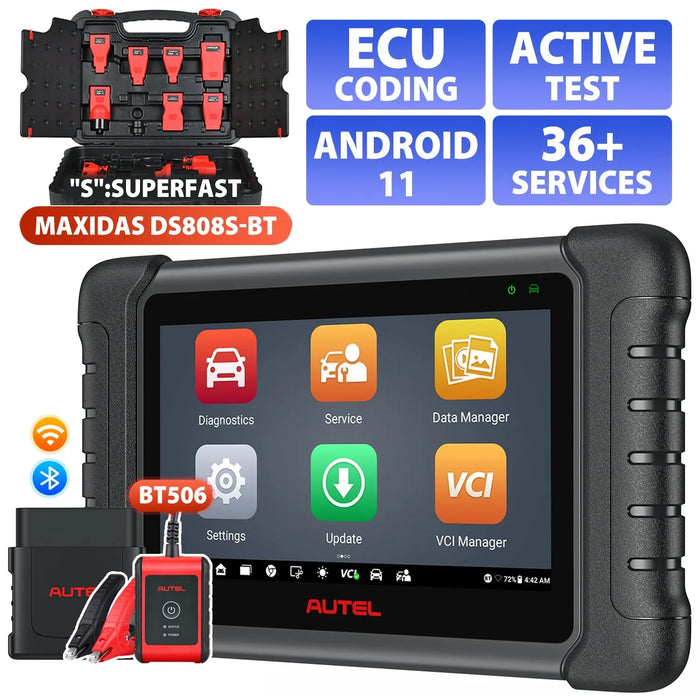

Autel MP808BT Pro can do battery test with Autel BT506, To produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determining a battery’s true health.
Autel MaxiDAS DS808S-BT Specifications
| Operating System: |
Android™ 11 |
| Processor |
Cortex-A55 quad-core processor (1.8GHz) |
| Memory |
4GB RAM & 64GB On-board Memory |
| Display |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity: |
Mini USB 2.0, USB2.0, Wi-Fi, HDMI Type A, Micro SD Card(supports up to 64GB), Wireless BT V2.1+EDR
|
| Sensors |
Light sensor for brightness auto adjust |
| Audio Input/Output: |
Input: N/A, Output: buzzer |
| Power and Battery |
3.7 V/3200 mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Tested Battery Life |
Around 4.5 hours of continuous use |
| Battery Charging Input |
5V/1.5A |
| Power and Battery |
3.7 V/5000mAh lithium-polymer battery, Charges via 5 VDC power supply
|
| Operating Temp |
0 to 50°C (32 to 122°F) |
| Storage Temp |
-10 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D): |
270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”) |
| Net Weight |
885g (2.31 lb.) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6 |
